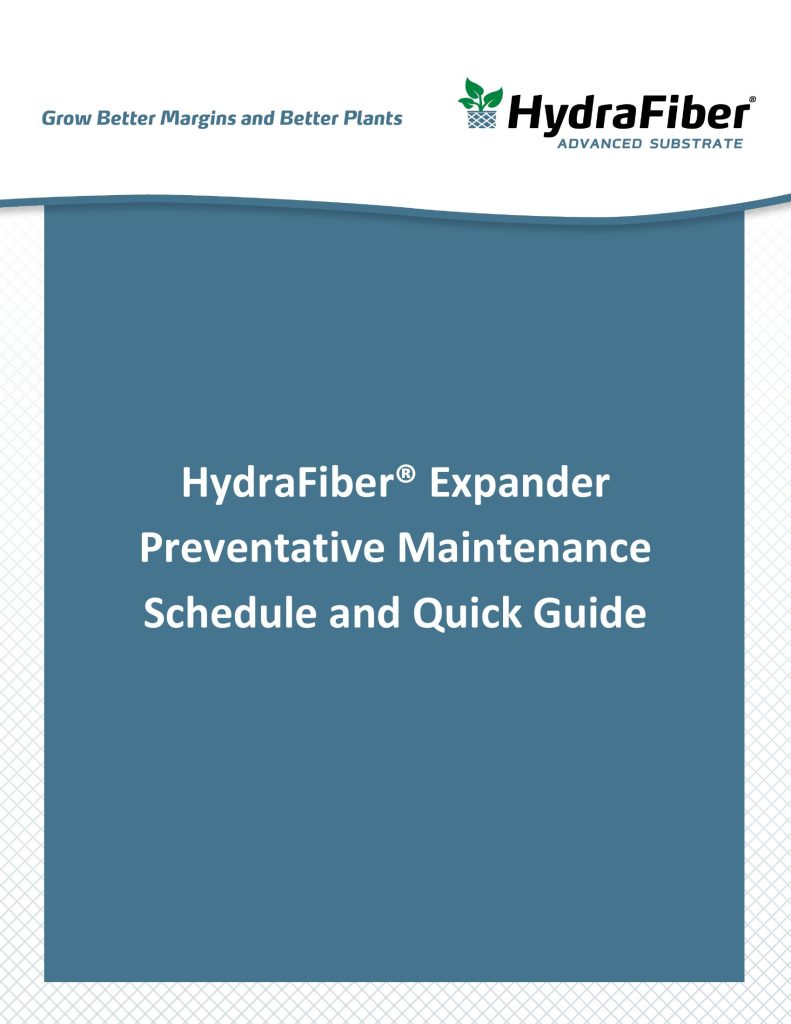

The HydraFiber Expander preventative maintenance guide outlines weekly, monthly and annual procedures to help maintain reliability, performance and overall efficiency. It directs qualified personnel to follow electrical lockout/tagout procedures, recognize that rollers utilize very sharp teeth, and ensure tools and parts are clear before start-up. Tasks include greasing shafts and tensioner bearings with “HI-TEMP” grease, inspecting and cleaning belts, chains, guards, hoppers and shredder components, and checking alignment, tension and wear. The guide also specifies torque values for critical fasteners, lubrication instructions for ball bearing motors, and notes that procedures apply to the basic shredder machine only; ancillary equipment may require different schedules and documentation.
Key Points
- Weekly procedures include greasing all shafts and tensioner bearings with “HI-TEMP” grease (500°F min.), inspecting seals and drive belts (½” deflection at 3 lbs.), cleaning dust and material, and removing build-up in the shredder chamber, mixing auger and peat hopper.
- Monthly procedures cover inspecting chains and sprockets on in-feed pinch roller assemblies, checking infeed conveyor tracking and tension, evaluating tensioner pulleys and bearings, and tightening shredder shaft bearing mounting bolts to 75 ft/lbs and bearing and tensioner collar set-screws to 80 in/lbs.
- Additional checks include tightening sheave and sprocket QD bushings to 108 in/lbs, confirming the structural condition and secure mounting of all guards and sensors, cleaning electrical enclosures, and testing E-Stop(s) with power ON.
- Annual procedures include greasing shredder motor bearings per suggested relubrication intervals, inspecting shredder rollers for wear or damage, tightening shredder motor mounting bolts to 25 ft/lbs, and following lubrication guidance and cautions for ball bearing motors.
